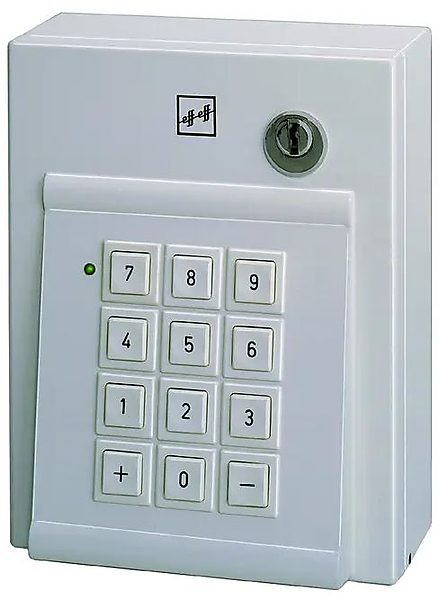

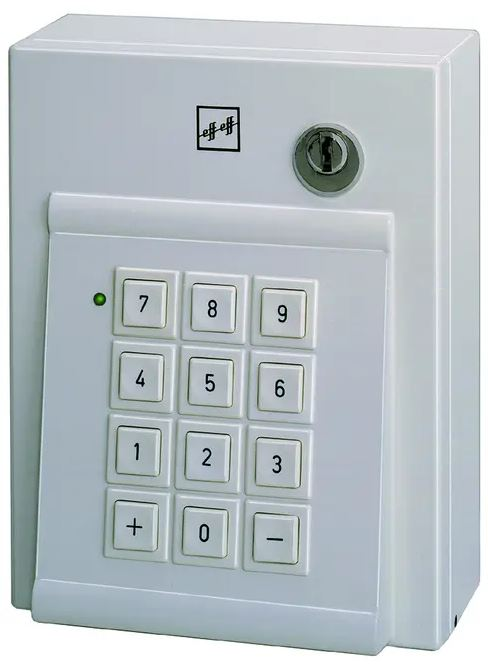

EffEff 421-30 stuureenheid met 1 deur / potentiaal vrij wisselcontact EffEff Compact keypad unit for 230 V Compact door code device with PIN incl. power supply. Single-door solution, including 230 V power supply, 12 V, 0.25 A
Overview of Advantages
2 to 6 digit code numbers for 1 million code combinations
Up to 3 different user codes, 1 main code
Simple code management using the main code (changes made via programming key on device)
Short-term or permanent unlocking via keypad
Electric strike monitoring contact evaluation: Resetting of release time after door is opened, single entry on each release, secure locking of door
Use as organisational tool for daily operations
For all areas which must only be accessible to authorised persons
Code-operated lock
Little installation work required
Scope of delivery
1 compact door code device
1 operating manual
230V power supply
Note
Please only use electric strikes with recovery diode and monitoring contact (e.g. 11805RR)
Dit product wordt per stuks verkocht.
- Supply voltage 230 V AC/ ± 10 %
- Input operating voltage 230 V AC
- Release time 1 - 30 seconds
- Outputs 1 x potential-free relay
- Inputs 1 x input for monitoring contact
- Contact type Relay contact/changeover contact potential-free
- Operating temperature range 0 °C to +40 °C
- Class of protection IP 30
- Material housing Aluminium die casting, powder-coated
- Colour Grey white (RAL 9002)
- Dimension 120 x 156 x 67 mm
